2 - 16 MC9090-G RFID User Guide Supplement

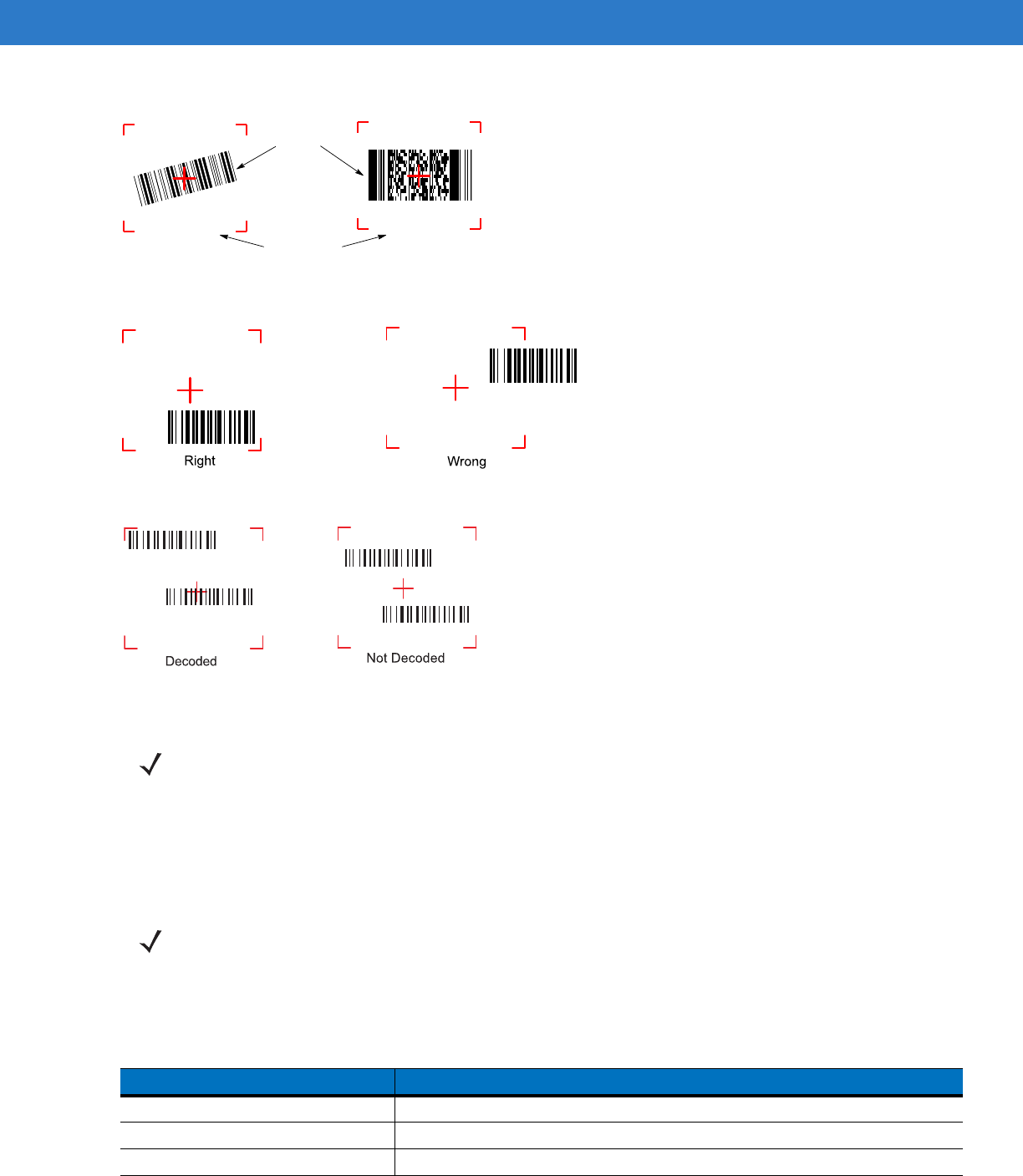

Figure 2-17

Bar Code Centered in Aiming Pattern

Figure 2-18

Bar Code Not Centered in Aiming Pattern

Figure 2-19

Pick List Mode with Multiple Bar Codes in Aiming Pattern

4. Release the trigger.

Scanning Tips

Optimal scanning distance varies with bar code density and scanner optics.

•

Hold the scanner farther away for larger symbols.

•

Move the scanner closer for symbols with bars that are close together.

Scan LED Indicator

The Indicator LED bar on the mobile computer provides a visual indication of the scan status.

Linear bar code

PDF417 symbol

Symbol

View Finder

(Aiming Pattern)

NOTE Imager decoding usually occurs instantaneously. The mobile computer repeats the steps required to take

a digital picture (image) of a poor or difficult bar code, as long as the trigger remains pulled.

NOTE Scanning procedures depend on the application and mobile computer configuration. An application may

use different scanning procedures from the one listed above.

Table 2-6

Scan LED Indicators

LED Status Indication

Off Not scanning.

Solid Red Laser enabled, scanning/imaging in process.

Solid Green Successful decode.
