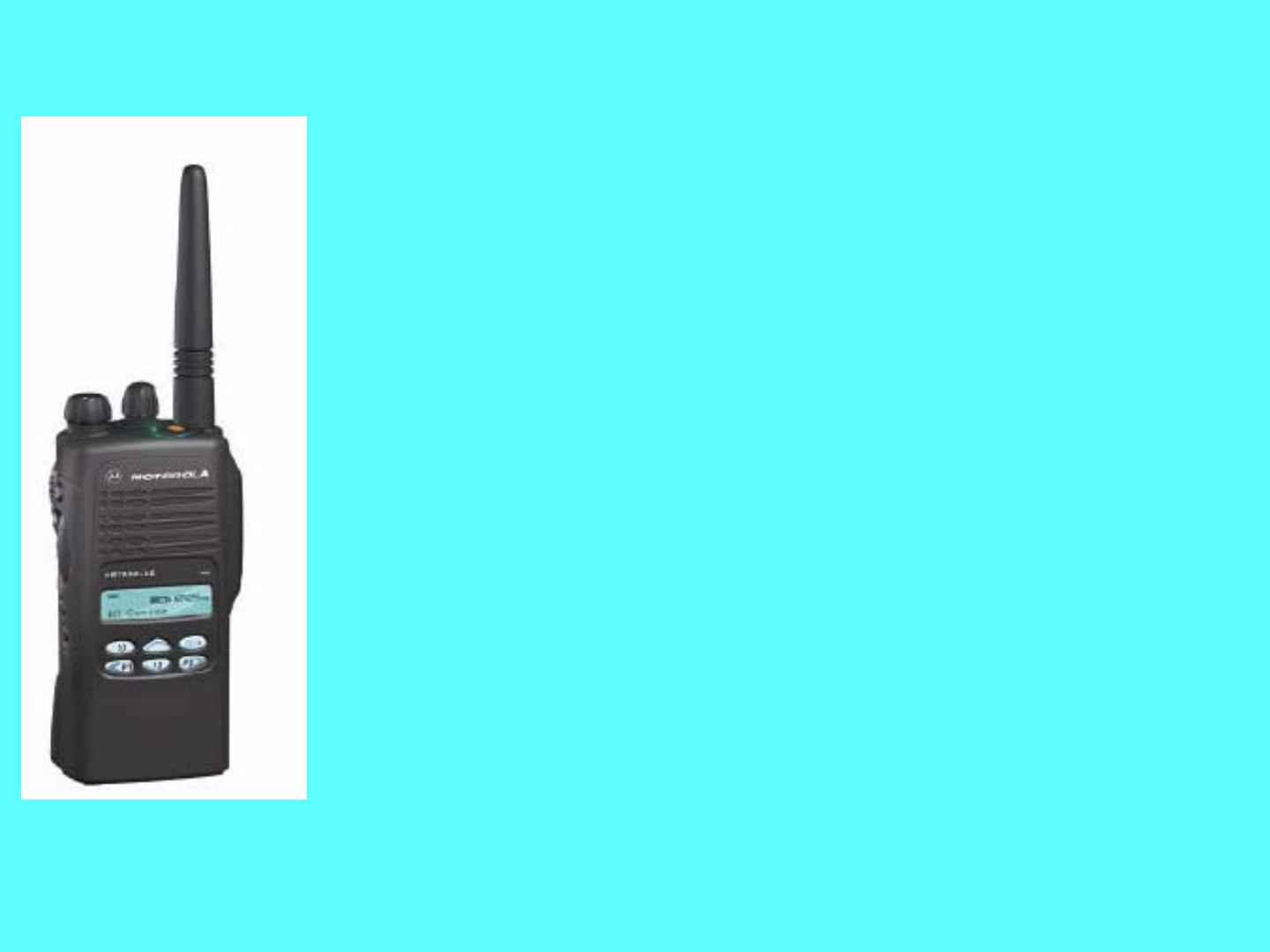

Motorola HT1250 Operator's Manual

The Motorola HT1250 Portable radios are designed for use on VHF conventional operation with, ruggedness, and versatility.HT1250 radios will operate i

Controls on Front of Radio, continuedMenu Exit. One of the menu keys used to scroll through menu selectable functions when in menu mode. The Menu Exit

Controls on Left Side of RadioPush-To-Talk. The Push-to-Talk (PTT) switch is located on the side of the radio for easy operation while holding the rad

Controls on Back of RadioBattery and Belt Clip. Battery used to power the radio. A variety ofbatteries are available to suit different operating condi

Indicator IconsThe top two LCD rows of the HT1250·LS screen display icons thatindicate menu and radio status information. The following are descriptio

Indicator Icons, continuedScanIndicates that the Scan feature has been activated. This icon also indicates whether this activity on a non-priority cha

Option BoardAn Option Board is activated.Battery LevelThe number of bars (0-4) shown indicates the remaining charge in theinstalled battery.Not Assign

The Motorola HT1250 portable radio produces tones to indicate various conditions of the radio.These tones can be divided into the following categories

Button TonesIn addition to having visual indicators, some of the programmable buttons use Button Tones to indicate one of two modes.The functions that

Menu NavigationThe Motorola HT1250 radio has a menu system for accessing and initiating functions. Selective CallScanHome Channel RevertHT 1250 Hot Zo

SCANNINGThere are three types of scan available in the HT1250 radios. System Scan can be st arted or stopped by pressing the preprogrammed feature but

HT 1250 IntroductionHot Zone Radio

Home Channel RevertHome Channel revert lets you automatically return to a preferred channel or talk-group.Home Channel Revert can be activated by pres

Troubleshooting ChecklistA guideline for identifying user level problems and their associated solutions.The column on the left describes to symptom th

HT 1250 Hot Zone RadioTroubleshooting

Factory Mutual ApprovalsFactory Mutual has given the HT•1250 an intrinsically safe rating for use in classes I, II, III, Division 1, Groups C,D,E,F an

HT 1250 Hot Zone Radio Questions?

HT1250 Includes:•Ni-MH High Capacity Battery•2 1/2-Inch Belt Clip•Antenna•Single Unit Rapid Rate Intelli-Charger•Operator’s Manual•Two Year Warranty-

Programmable Button Features Available•System Scan •All Group Scan •Nuisance Channel Delete •Telephone Interconnect •Speed Dial •Home Channel Revert •

HT Series AccessoriesBatteriesBattery ChargersAudio AccessoriesCarrying CasesHT 1250 Hot Zone Radio

HT1250 radio features · 14-character alphanumeric display, with icons.· Audio and LED Indications alert users of the radio’s changing status.· 6 Progr

Controls on Top of Radio· Power On/Off and Volume. Turns the radio on or off and adjusts thevolume to a comfortable listening level.· Zone/Channel Sel

· Top Programmable Button. This button can be programmed to activate a specific function. All programmable buttons can be programmed to activate the f

Controls on Front of Radio14-Character Alphanumeric Display. Identifies conventional channels using easily understandable aliases.Menu Select. One of
